ES80A-A6 , AQI for short, full name as Air quality online monitoring system, this product combine the electrochemical sensor technical and laser sensor technical , can monitor the environment air pollutants as SO2,O3,CO,NO2,PM2.5,PM10 and the other parameters , besides adopt the Eyesky’s unique compensation algorithm of temperature and humidity and related patented technologies to minimize the impact of environmental temperature and humidity on the detection results in gas detection and dust detection.
AQI system is mainly composed of particulate matter in situ measurement device, four gases parameter monitoring module, meteorological monitoring module, video monitoring module, data collection and wireless transmission unit. Combined with monitoring platform software, the system can realize air quality release, data comprehensive analysis, pollution exceeding the limit alarm, urban environment photography, video monitoring and other functions.
Feature:
1. Modules design , configure any combination, easy to set different monitoring factors on demand, suitable for large-scale grid distribution;
2. According to the standard to do the on-site calibration；
3. Adopt four electrode high precision imported sensor;
4. No need to change the sampling cutter ,can monitor the concentration of PM10,PM2.5,TSP at same time；
5. High precision ADC data acquisition system can monitor PPB level pollutants;
6. Particulate matter sampling is controlled by dynamic heating and dehumidification system to remove the influence of measurement data cause by water mist;
7. Adopt long life anti-interference sampling dynamic system, quiet, efficient;The sampling period is adjustable;
8. Industrial data transmission module is selected to ensure stable and reliable data transmission.The system adopts two-channel communication mode to ensure data continuity;
9. Not only can it realize the remote data transmission, but also can read the system status information remotely, and can realize the remote control, realize the remote modification of instrument parameters, diagnose the fault;
10. Optional weather parameter testing system;
11. Real-time field data display: the update time of terminal instrument data can be adjusted;
Description of particle monitoring module principle
Compared with traditional screening and settling methods, the method of measuring dust concentration by light scattering principle has many advantages, such as wide applicability, fast measurement speed, high accuracy and on-line real-time measurement.
The particulate matter in situ measurement module adopts high-sensitive light scattering photometer (turbidimeter) technology to measure the particulate matter concentration.The particulate matter is cutting through a particle cutter firstly to cut PM2.5 or PM10 particles that we need to measure. After cutting, the particulate matter goes through the injection port and enters the optical measurement room. The source generates 880nm of infrared light to scatter on the particles, and the detector located at a 90° Angle captures the scattered light. Through the relationship between the scattered light intensity and the calibrated particle mass concentration, the mass concentration is calculated and transmitted to the data acquisition and processing subsystem in real time.
PM10 monitoring module
a) Working principle: light scattering principle, continuous real-time online monitoring
b) Measuring range:0-1000ug/m3
c) Accuracy :±10%
d) Parallelism:<10%
e) Resolution: 1μg/m3
f) Particulate: PM10
a) Sampling method:Pump suction,flow as 1.3L/min
g) Cutter type:Cyclone cutter
h) The height of installation of probe ≥3m
i) Working environment:-20-50℃,10-95%RH,No condensation
PM2.5 monitoring module
b) Working principle:Light scattering principle, continuous real-time online monitoring
c) Measuring range:0-1000ug/m3
d) Accuracy:reading ±10%
e) Parallelism:<10%
f) Resolution:1μg/m3
g) Particulate:PM2.5
h) Sampling method:pump suction,flow 1.3L/min
i) Cutter type:Cyclone cutter
j) Height of installation of probe ≥3m
k) Working environment:-20-50℃,10-95%RH,No condensation
Adopt the electrochmical method to monitoring SO2,NO2,CO,O3,of which,the detail specification of each module as below:
Gases type Measuring range /ppb Resolution/ppb Indication error/%FS T90/sec
| Gases type | Measuring range /ppb | Resolution/ppb | Indication error/%FS | T90/sec |
| Ozone (O3) | 500 | 1 | ±10 | 120 |
| Nitrogen dioxide(NO2) | 500 | 1 | ±10 | 90 |
| Sulfur dioxide(SO2) | 500 | 1 | ±10 | 90 |
| Carbon monoxide(CO) | 50ppm | 0.1ppm | ±10 | 90 |
|
|

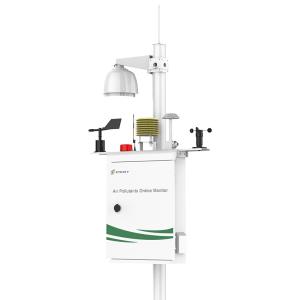

High Precision environmental monitoring system (AQMS) SO2 O3 NO2 CO particulate matter unit wireless signal output Images
|
